BORE WELDING MACHINES

CLIMAX’s automated welding machines are designed to attach directly to several of our boring machine mounting fixtures allowing a single setup for both welding and machining operations. These automated welders offer high-quality, affordable welding performance for bore, flange and valve repair.

Related Products

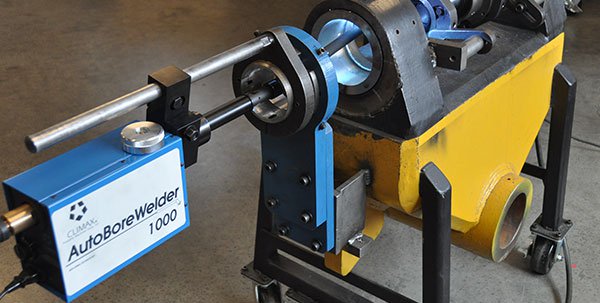

BW1000 Auto Bore Welder

Axial Travel
9 inches (228.6 mm)
Wire Diameter Range
0.030 – 0.045 inches (0.76 – 1.14 mm)
Step Range/Pitch
Pitch: Pitch: 0.125 inches (3.2 mm) Helical
Rotational Direction
Clockwise rotation
Auto-Skip
No
Standard Torch Range
0.88 – 24 inches (22.4 – 609.6 mm)

Download Brochure

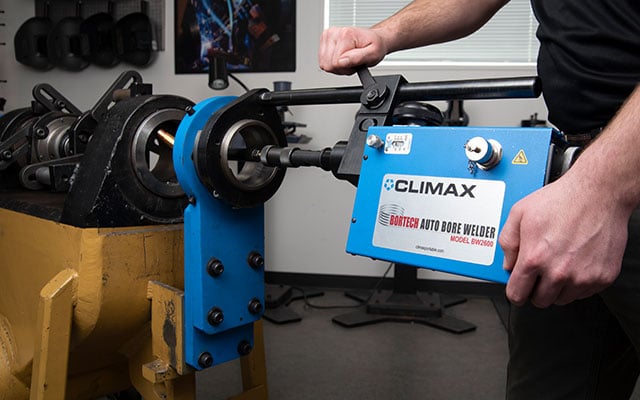

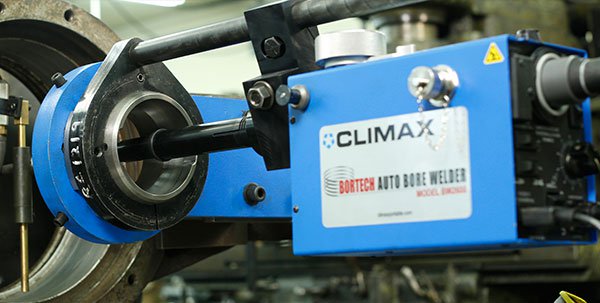

BW2600 Auto Bore Welder

Axial Travel
9 inches (228.6 mm)
Wire Diameter Range
0.030 – 0.045 inches (0.76 – 1.14 mm)
Step Range/Pitch
Step Range: 0.050 – 0.200 inches (1.27 – 5.08 mm) per rev
Rotational Direction
Reversible
Auto-Skip
Skip / Fill
Standard Torch Range
0.88 – 24 inches (22.4 – 609.6 mm)

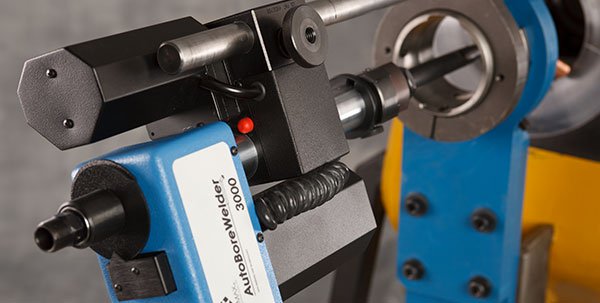

BW3000 Auto Bore Welder

Axial Travel
6 or 12 inches (152.4 or 304.8 mm)
Wire Diameter Range
0.023 – 0.045 inches (0.58 – 1.14 mm)
Step Range/Pitch
Step Range: 0.040 – 0.220 inches (1.0 – 5.6 mm)
Rotational Direction
Reversible
Auto-Skip
Auto Skip, Pie Mode & Carriage Return
Standard Torch Range
0.50 – 54 inches (12.7 – 1371.6 mm)

Download Brochure
